Enroll and Unenroll GE®/Jasco® and Schlage® Lighting Controls

Enroll and Unenroll GE®/Jasco® and Schlage® Lighting Controls

The GE/Jasco lighting controls and Schlage lighting controls are among the most common lighting controls added.  All lighting controls, being wall-powered, will additionally act as repeaters.

Enrollment - To add a device to the network, you must perform an enrollment, also known as inclusion.  You can enroll the device via the bridge (standalone or XL thermostat), mobile app, or web portal. Via a Standalone Bridge (BR100 or BR200) Via an XL824/850/1050 Thermostat Via the Mobile App Via the Web Portal Unenrollment - To remove a device from the network, you must perform an unenrollment, also known as exclusion.  You can unenroll using the bridge (standalone or XL thermostat) or mobile app. NOTE: While there is an option in the web portal to remove the device, we recommend that you only use it when instructed to by our Support agents. Via a Standalone Bridge (BR100 or BR200) Via an XL824/850/1050 Thermostat Via the Mobile App Troubleshooting



---



Enrollment

1. Put the bridge into Enrollment mode.  Choose one of the following methods.:


   Via a Standalone Bridge (BR100 or BR200) Press the (+) button on the bridge. BR100 BR200 Proceed to Step 2.

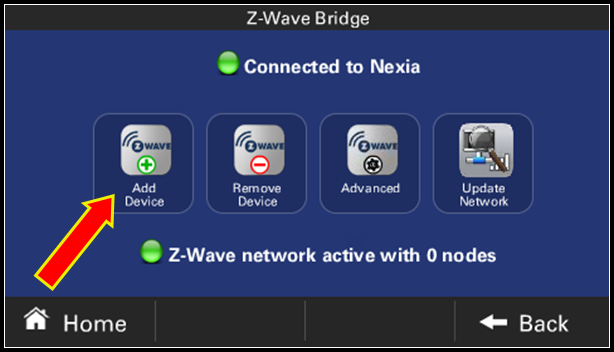

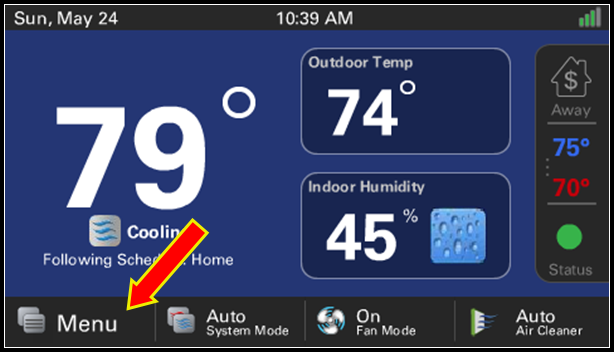

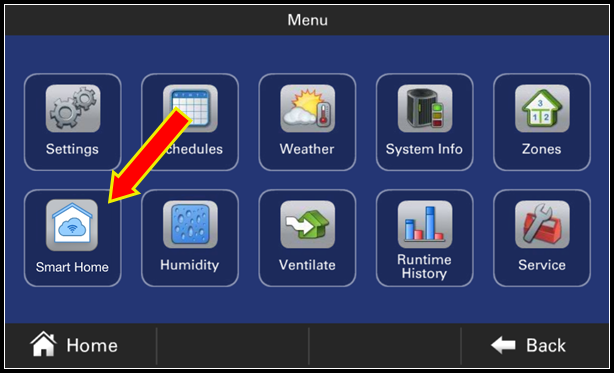

   Via an XL824/850/1050 Thermostat Press Menu. Select Smart Home. Tap Add Device. The thermostat will display a 240-second (4-minute) countdown to complete enrollment.  Please proceed to Step 2.

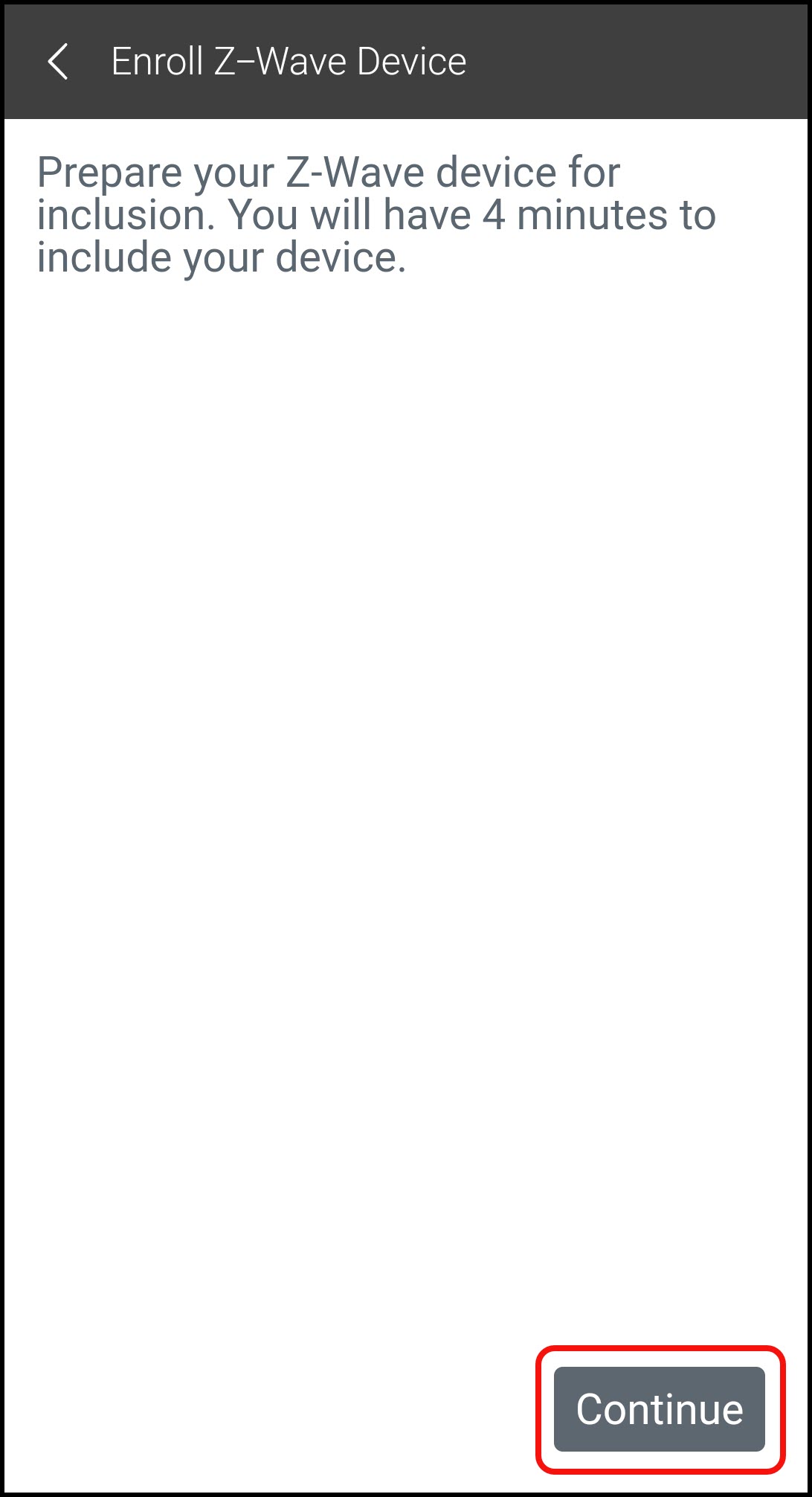

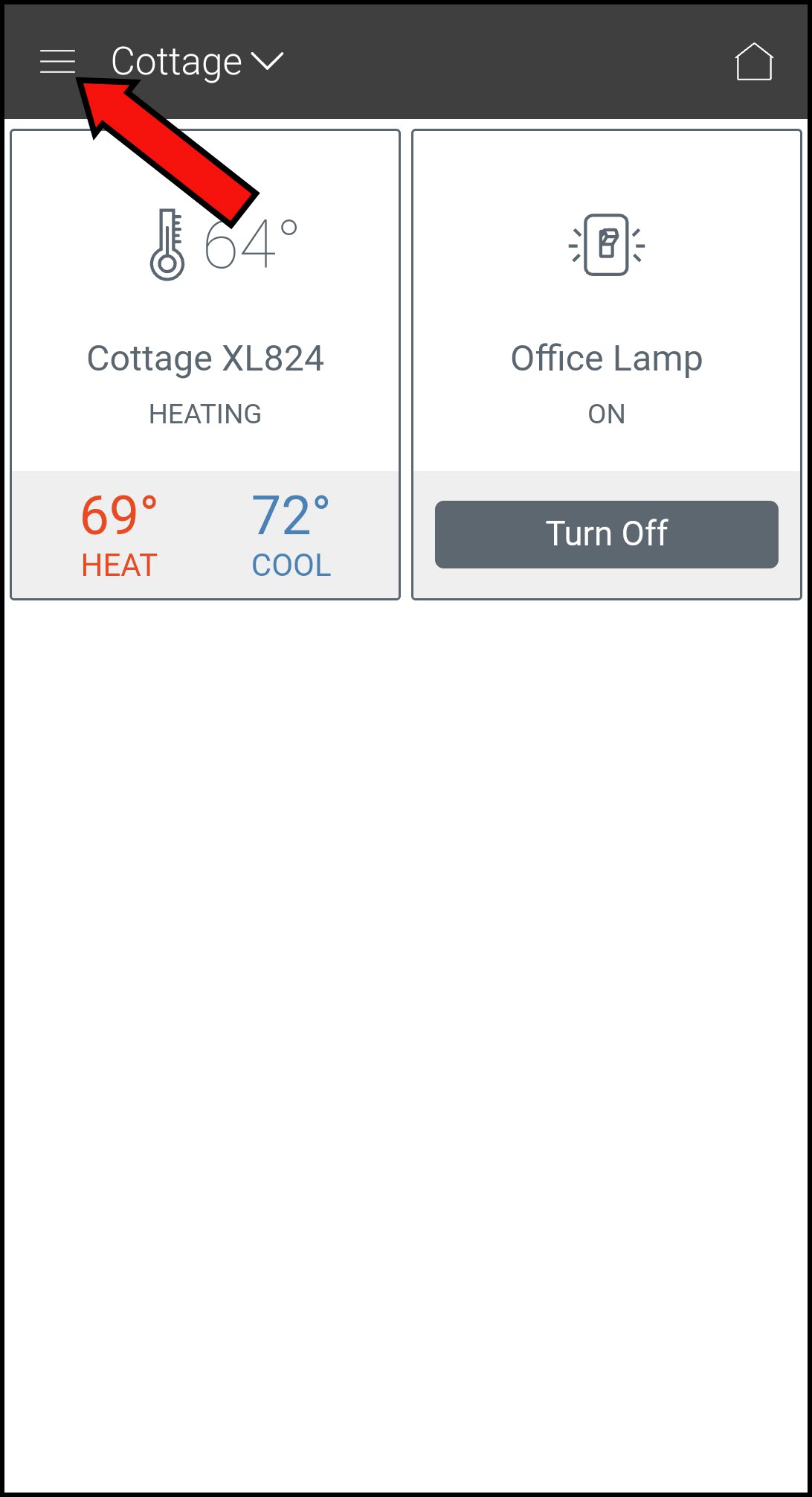

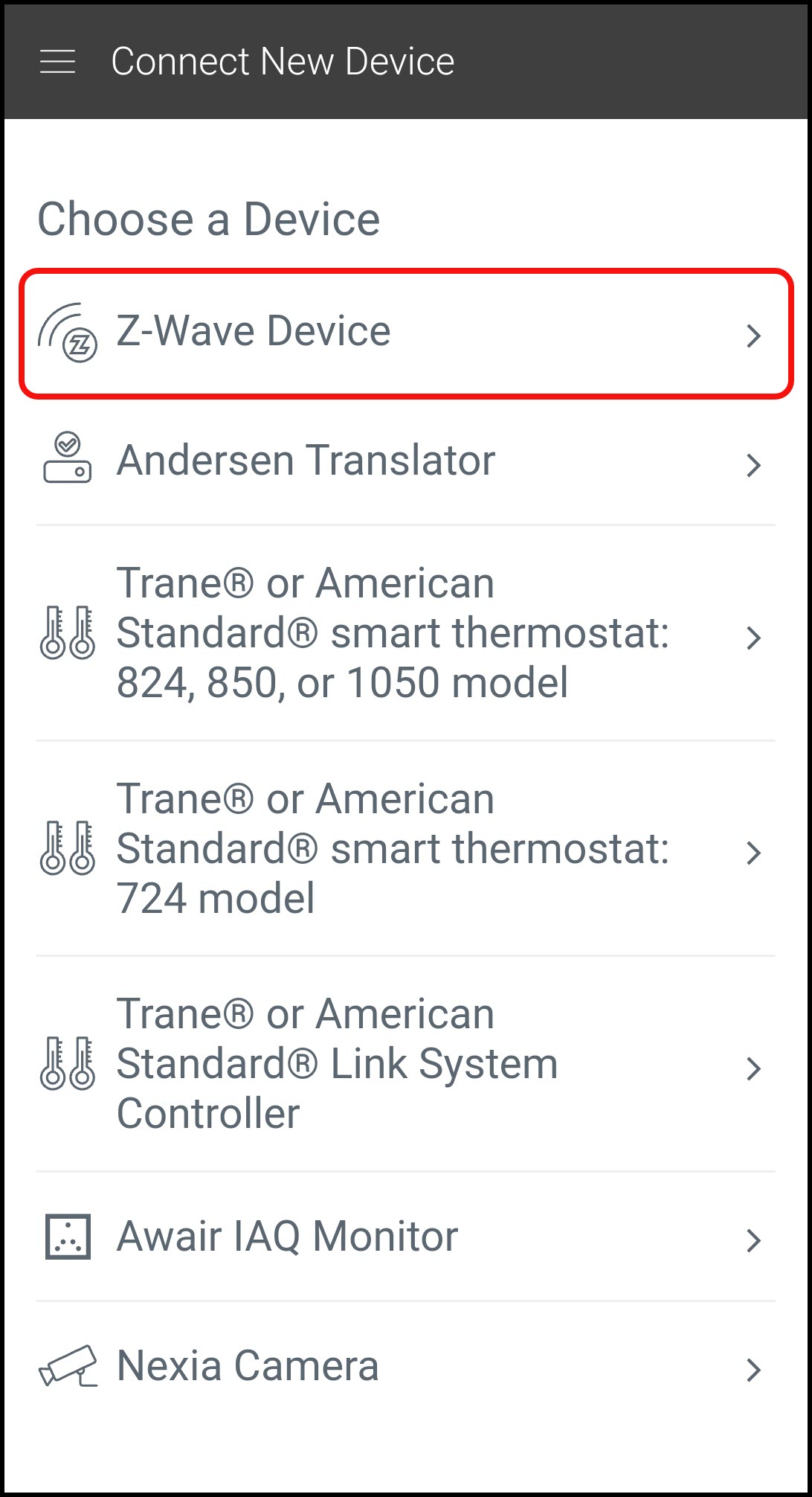

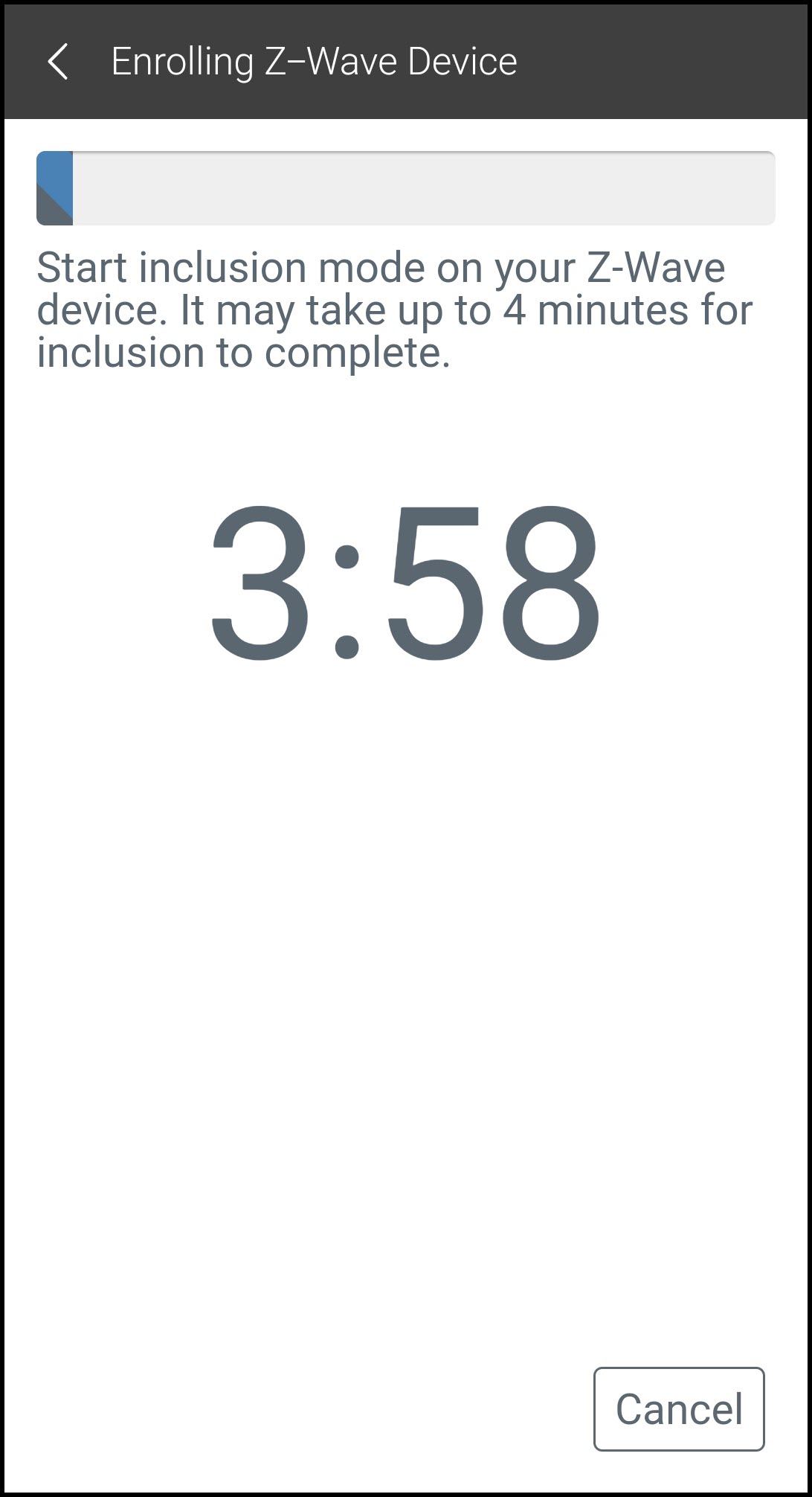

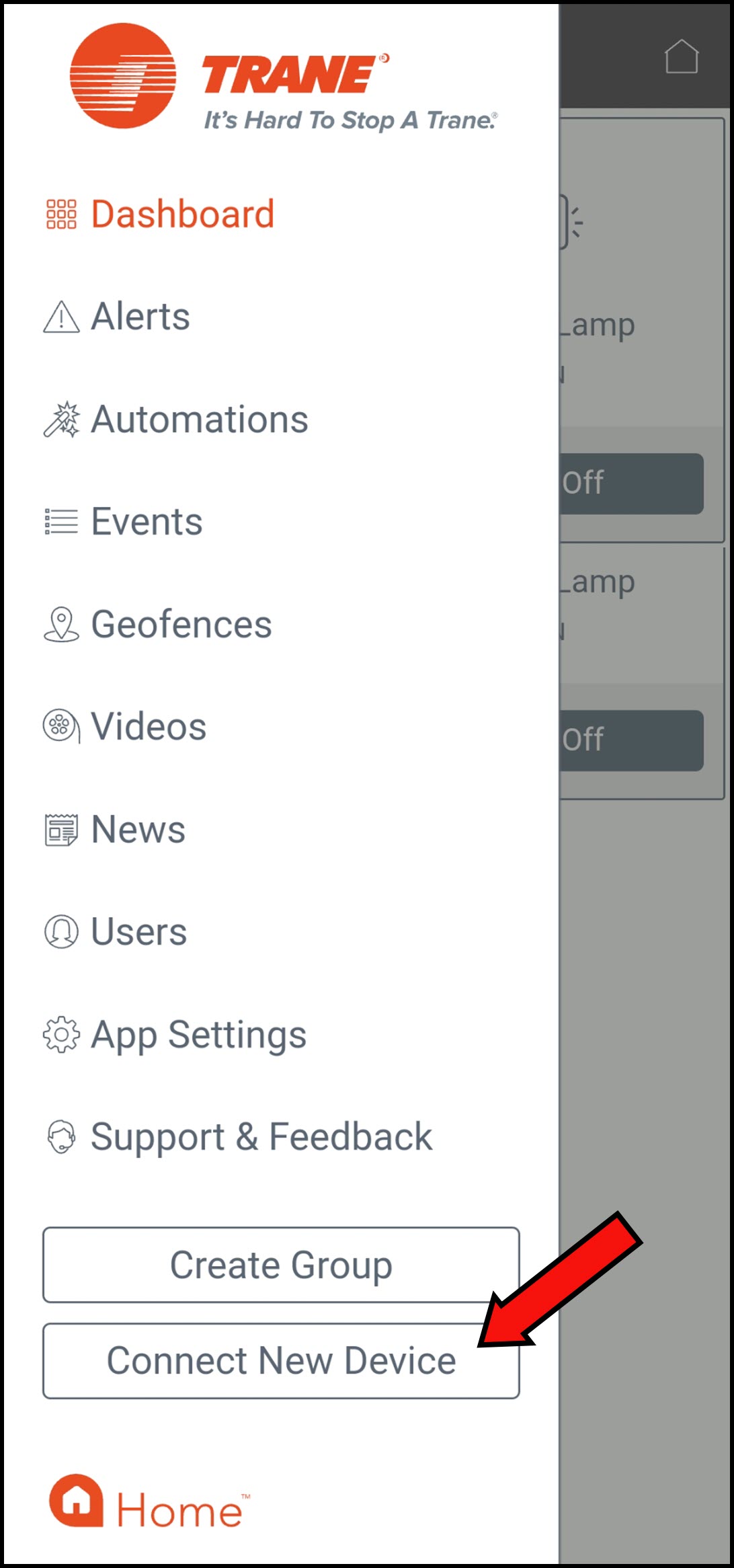

   Via the Mobile App Tap the Menu icon in the upper left corner of the app. Press Connect New Device. Select Z-Wave Device. Tap Continue The app will display a 4-minute countdown to complete enrollment.  Please proceed to Step 2.

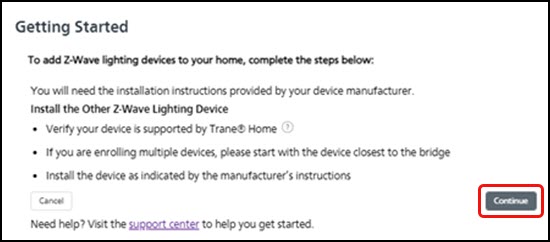

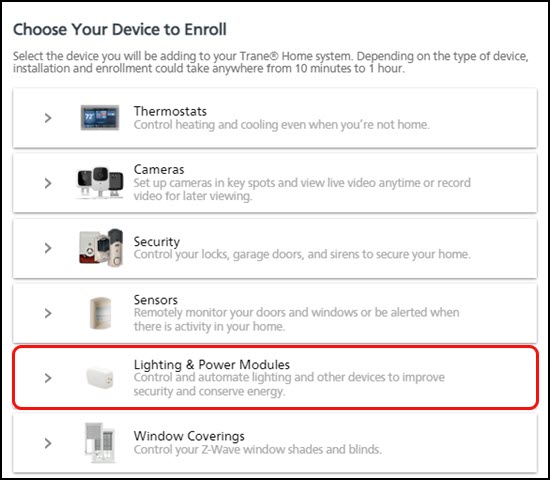

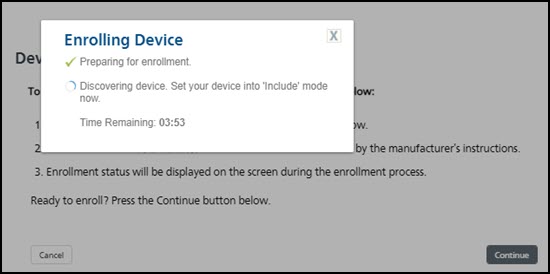

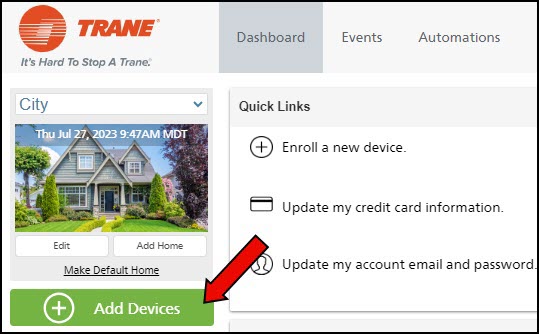

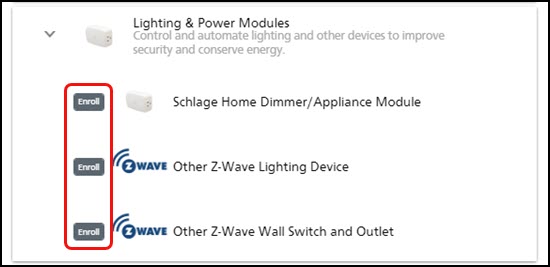

   Via the Web Portal Log into the web portal. Press Add Devices on the left side of the page. Select Lighting & Power Modules. Choose the device model.  If you are unsure, any selection will work. Click Continue until the countdown begins. The portal will display a 4-minute countdown to complete enrollment.  Please proceed to Step 2.

2. Perform the enrollment process on the lighting device itself.

   • For All GE/Jasco hard-wired switches and dimmers:
     • Tap the switch either ON or OFF ONCE.
   • For all GE/Jasco outlets and Z-Wave Direct-Wire Outdoor/Indoor Smart Switch:
     • Press the programming button ONCE.
   • For all Schlage lighting modules:
     • Tap the button in the middle TWICE.




3. Repeat Step 2 until the app/site/bridge acknowledges it.



---

---



Unenrollment

1. Put the bridge into Unerollment mode.  Choose one of the following methods.:


   Via a Standalone Bridge (BR100 or BR200) Press the (-) button on the bridge. BR100 BR200 Proceed to Step 2.

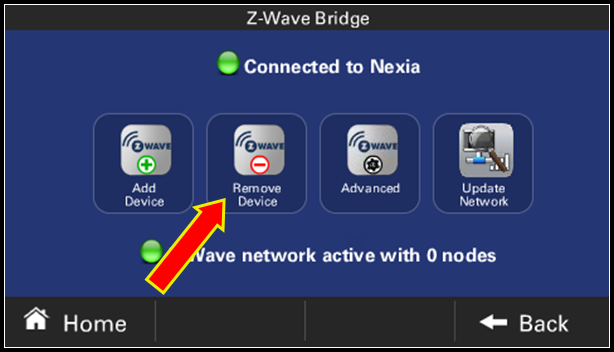

   Via an XL824/850/1050 Thermostat Press Menu. Select Smart Home. Tap Remove Device. The thermostat will display a 240-second (4-minute) countdown to complete removal.  Please proceed to Step 2.

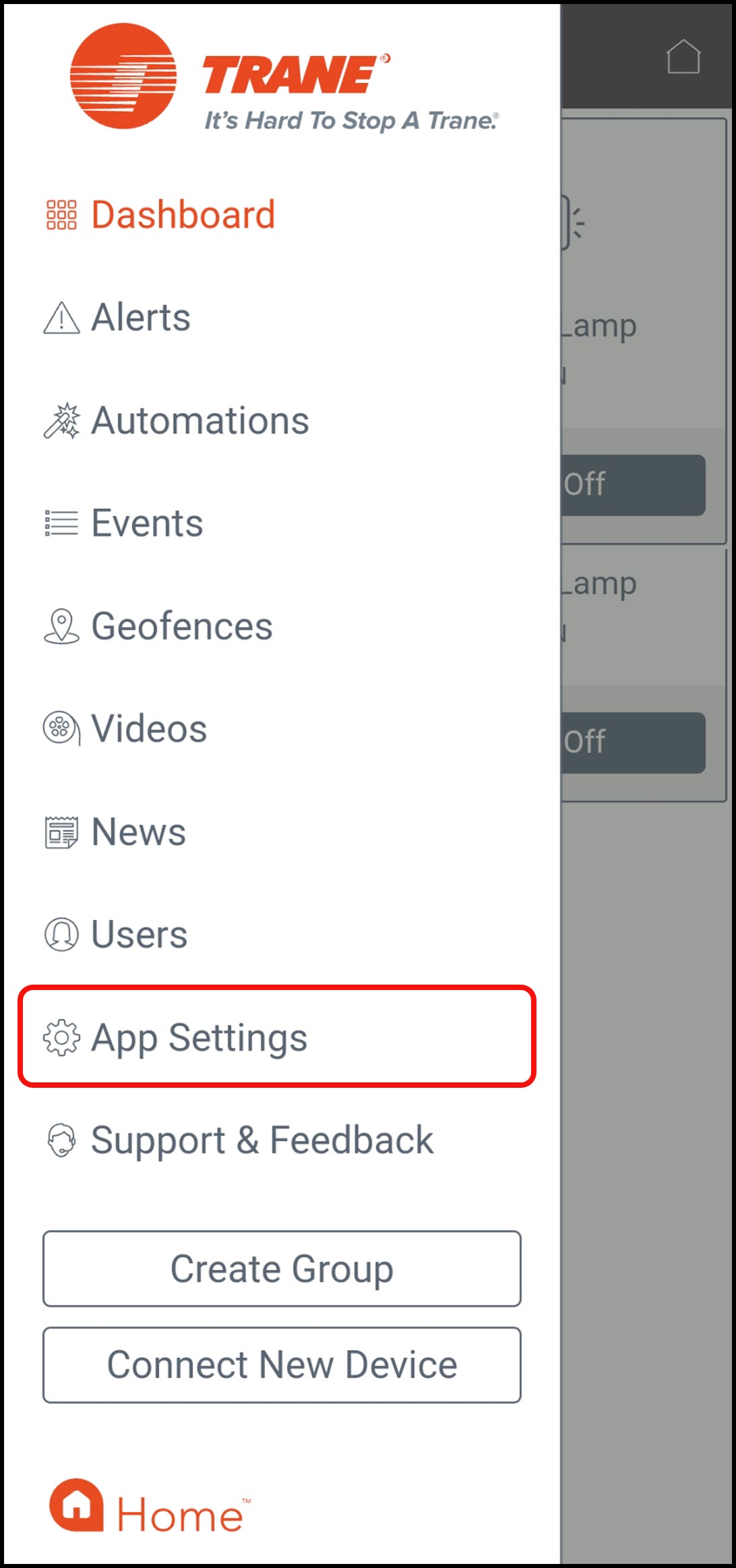

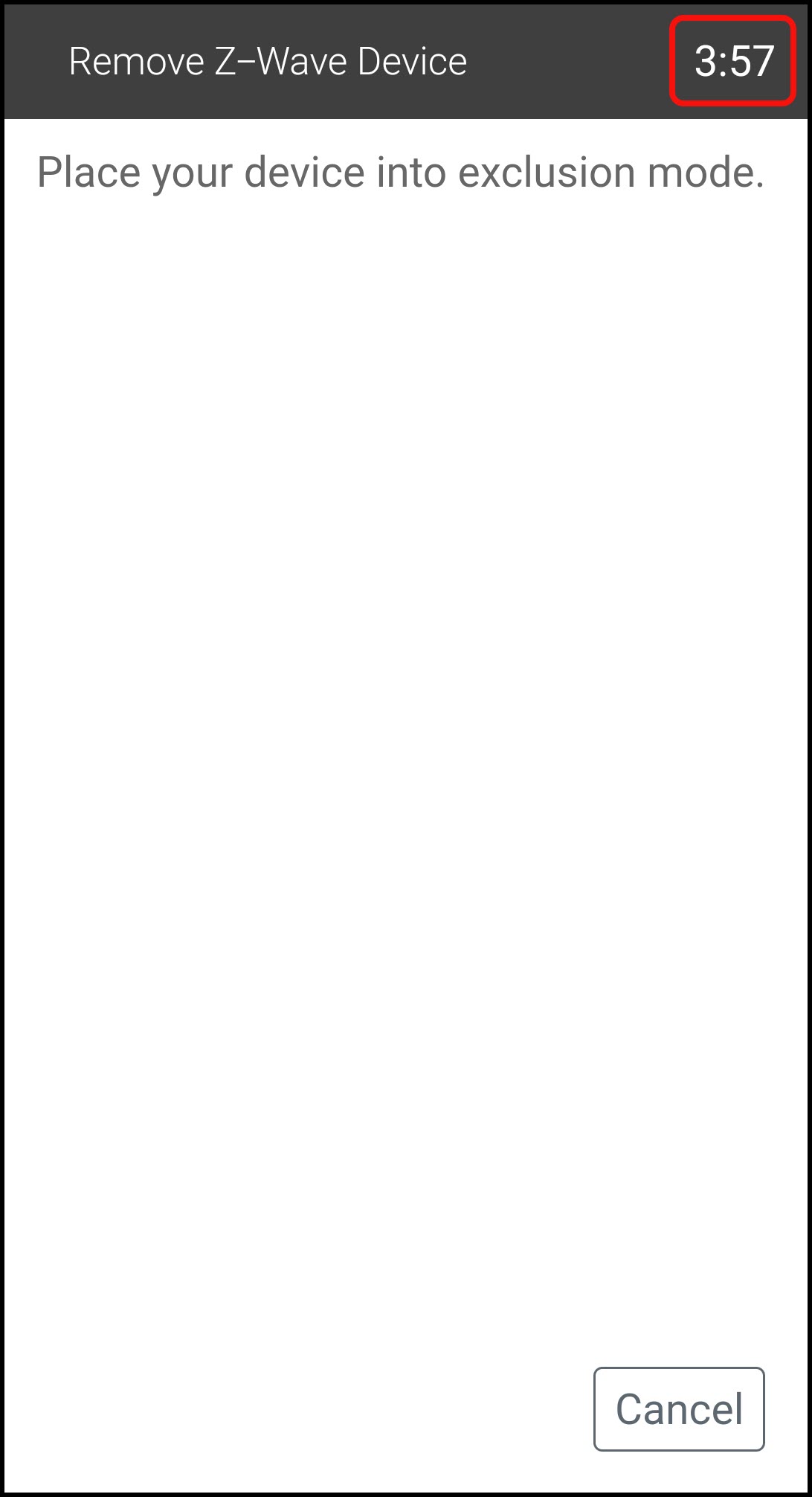

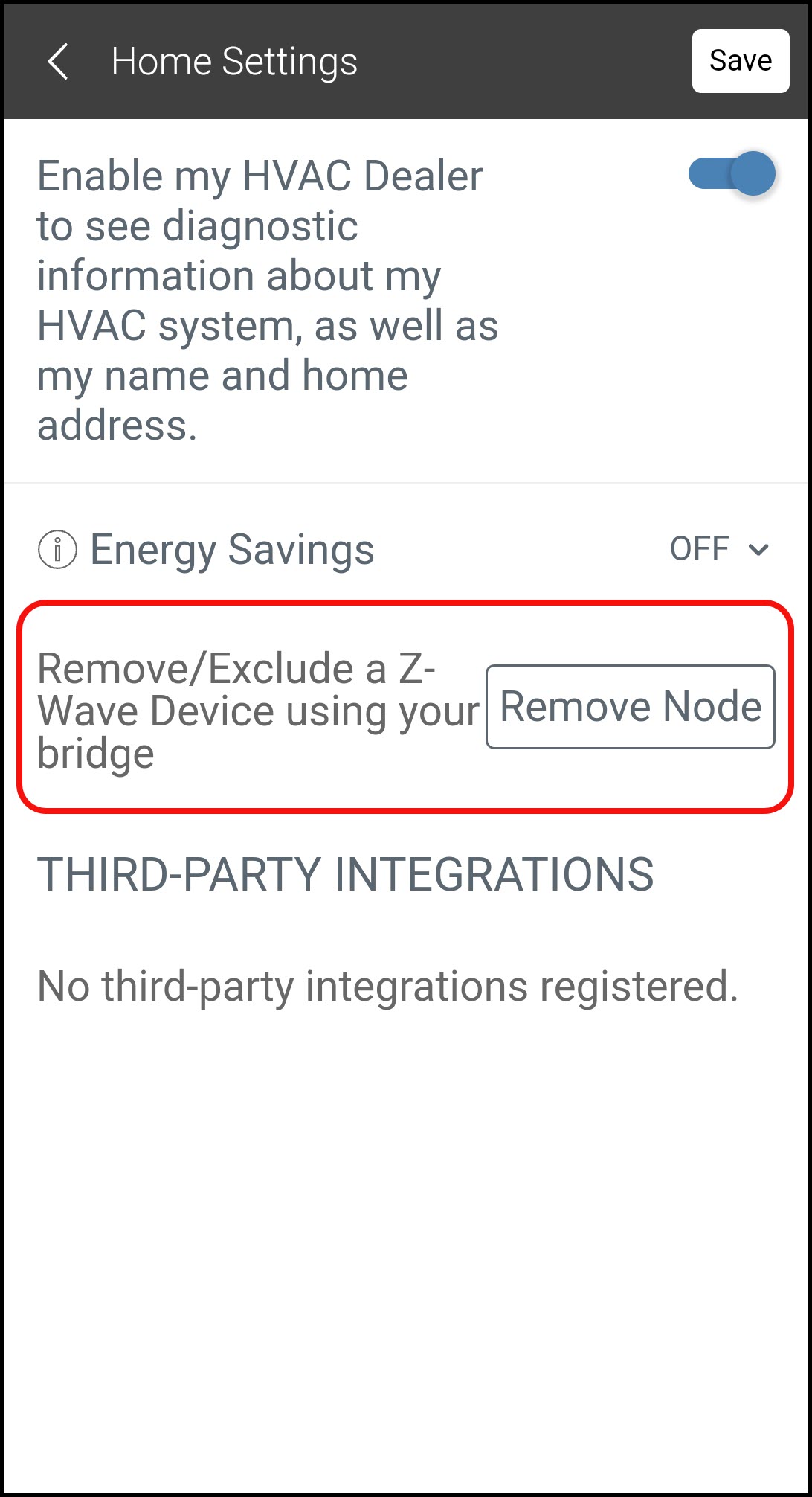

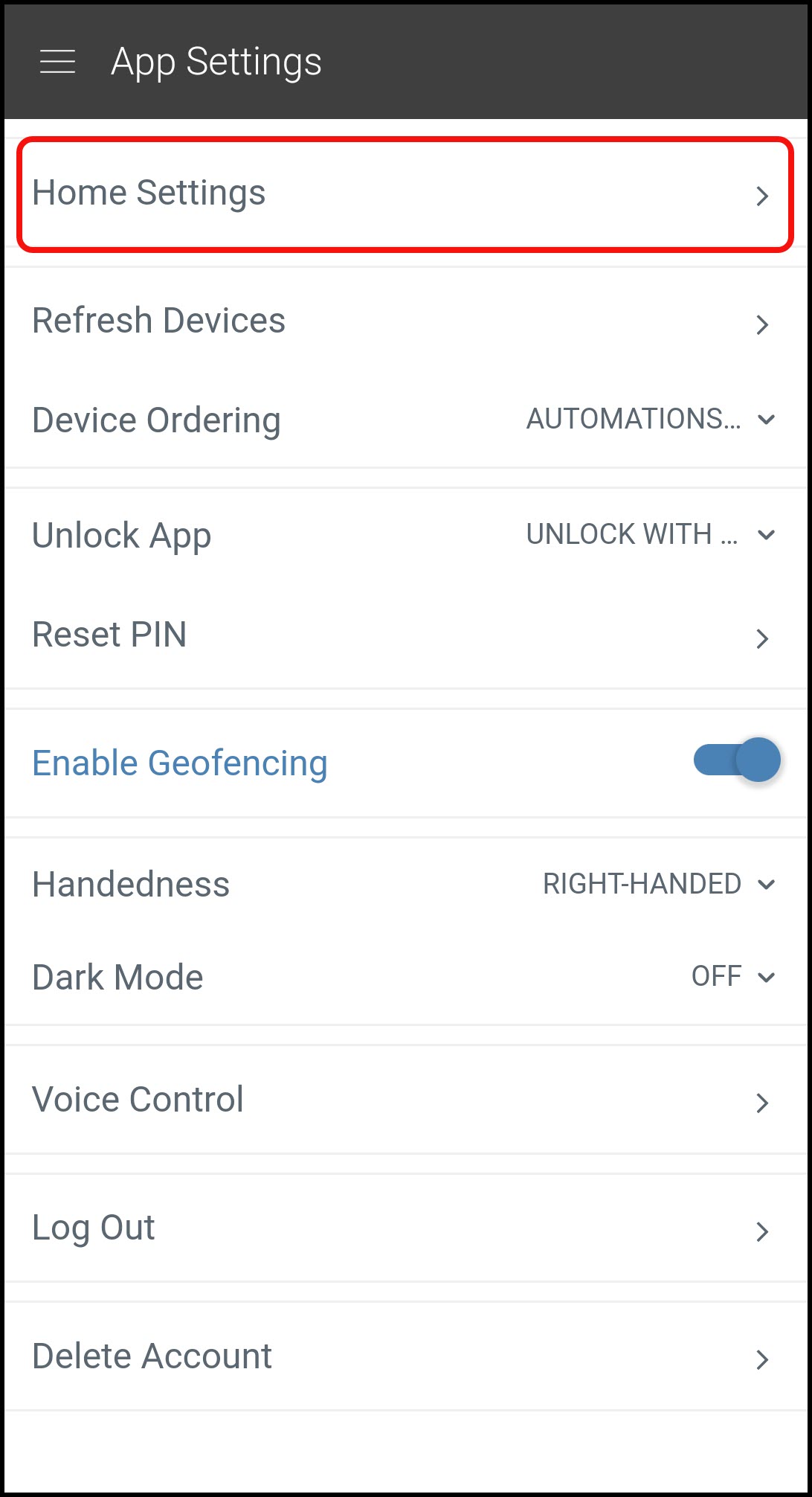

   Via the Mobile App Tap the Menu icon in the upper left corner of the app. Select App Settings. Choose Home Settings. Press Remove Node. The app will display a 4-minute countdown to complete removal.  Please proceed to Step 2.

2. Perform the unenrollment process on the device itself.

   • For All GE/Jasco hard-wired switches and dimmers:
     • Tap the switch either ON or OFF ONCE.
   • For all GE/Jasco outlets and Z-Wave Direct-Wire Outdoor/Indoor Smart Switch:
     • Press the programming button ONCE.
   • For all Schlage lighting modules:
     • Tap the button in the middle TWICE.
   •

3. Repeat Step 2 until the app/bridge acknowledges it.



---



Troubleshooting

• If any lighting control does not enroll, unenroll it first, even if the device does not appear in the app or portal.  The unenrollment process essentially makes the device "forget" any network in which it was previously enrolled, thus making it ready for enrollment again.
• If the lighting control will neither enroll nor unenroll, please call us when you are home, have physical access to your bridge/thermostat and the lighting control, and are available to troubleshoot.  We may request that you repeat some of the steps above so that we can confirm and document the outcome of each.

If you have any questions or need assistance, please contact Trane Home Customer Support via email at help@tranehome.com or call 1-877-288-7707, Monday-Friday 9 AM – 8 PM ET, and Saturday 10 AM – 5 PM ET.
