How to Enroll and Unenroll a Schlage® Lock

• Enrollment

• Unenrollment

• Understanding Your Lock's Blink Patterns



Lock Enrollment

Please locate your lock model below and follow the accompanying instructions.

NOTE: If your lock fails to enroll, you must unenroll it manually before reattempting enrollment.

• BE469NX/BE468

• BE469ZP

• FE599/BE369



BE469NX/BE468

1. Extend the deadbolt on the lock
2. On standalone bridges (BR100 and BR200): Press the (+) button on the bridge
   • • On the BR100 (black bridge with either a Schlage or Nexia® logo), the amber Z-Wave® light will flash slowly.
     • On the BR200 (white bridge with a Nexia logo), the green Z-Wave light will flash slowly.
3. On XL824/XL850 and XL1050 Thermostats:

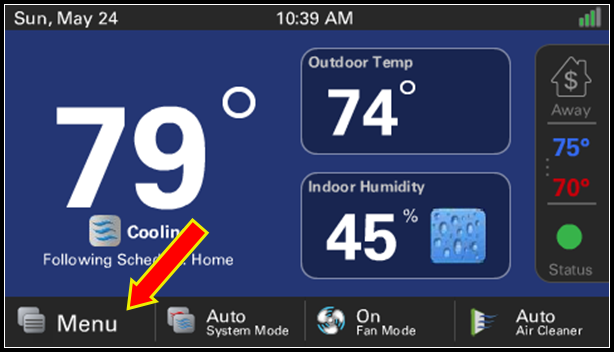

   1. 1. Press Menu.

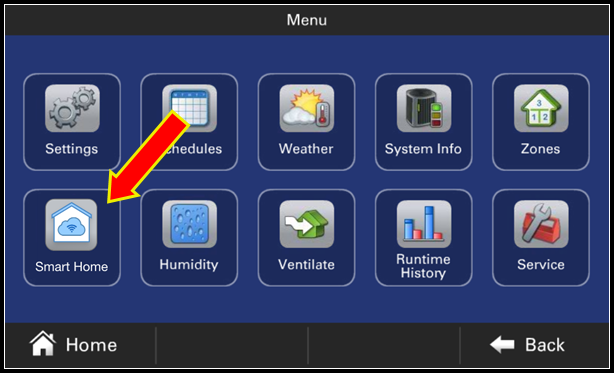

      2. Select Smart Home.

         NOTE: Some users may see a Nexia button here instead due to differences in firmware.

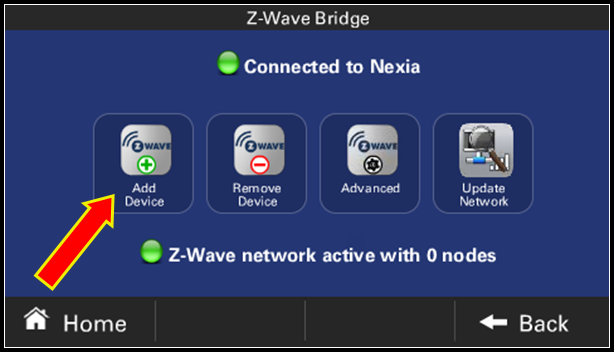

      3. Press Add Device.


4. On the lock, press the Schlage button to wake up the keypad
5. Enter the 6-digit code
6. Press the '0' button (The lock will flash amber while it is trying to pair.  If the process is successful, the lock will flash a green check.  If the process fails, the lock will flash a red X.)



BE469ZP

1. On the BR200 (white bridge with a Nexia logo): Press the (+) button on the bridge and the green Z-Wave light will flash slowly.
2. On the lock, press the Learn button located on the inside of the lock under the back battery cover.
   NOTE: The Learn button on the lock only works with the BR200 bridge.  If you are using a BR100 bridge (black bridge with either a Schlage or Nexia logo) or an XL thermostat instead of a bridge, or if these steps do not work for enrolling/un-enrolling the lock, please follow the enrollment procedure for the BE469NX listed above.



FE599/BE369

1. Enter the 6-digit Programming Code on the door lock

2. Press the Schlage button (Keypad will turn blue)

3. On standalone bridges (BR100 and BR200): Press the (+) button on the bridge.

   • • On the BR100 (black bridge with either a Schlage or Nexia logo), the amber Z-Wave light will flash slowly.

     • On the BR200 (white bridge with a Nexia logo), the green Z-Wave light will flash slowly.

4. On XL824/XL850 and XL1050 Thermostats:

   1. 1. Press Menu.


      2. Select Smart Home.

         NOTE: Some users may see a Nexia button here instead due to differences in firmware.
      3. Press Add Device.


5. Press the 0 key on the lock (Schlage light on lock should flash green if successful.
   • On the BR100 (black bridge), the amber Z-Wave light should flash rapidly then turn solid.
   • On the BR200 (white bridge), the green Z-Wave light should flash rapidly 5 times then turn solid.
   • On the XL824/XL850 and XL1050 thermostats, the screen will return to the Smart Home (or Nexia) menu.



Unenrollment

1. On Standalone Bridges (BR100 and BR200) - repeat the enrollment process, but press the minus (-) button on the bridge.

   • If using a BR100 bridge,  make sure the 9-Volt battery in the bridge is good.

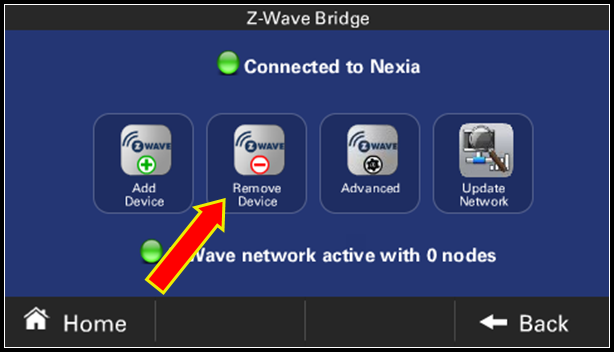

2. On XL824/XL850 and XL1050 Thermostats - repeat the enrollment process, but press Remove Device in the Smart Home/Nexia menu.





Understanding Your Lock's Blink Patterns

Check your lock's batteries by entering a user code on the lock.  The lists below describe the light sequences for Schlage lock models BE469, BE468, FE599, and BE369.



BE469/BE468 -- 4 AA batteries

• Green checkmark – Correct Code
• Red X – Incorrect Code
• Amber circular light flashing – Low Batteries
• Green checkmark/Red X – Vacation Mode

FE599 -- 4 AA batteries

• Green flash – Correct Code
• Red flash – Incorrect Code
• Red/Green flash – Low Batteries
• Green/Red – Vacation Mode

BE369 -- 4 AA batteries and a 9V battery

NOTE: the AA batteries power the Z-Wave chip and the 9V battery powers the keypad.  You must have both installed.

• Green flash – Correct Code
• Red flash – Incorrect Code
• Red/green flash – Low 9V Battery
• Green/Red – Vacation Mode
• Green/Orange – Low AA Batteries
• Red/Green/Orange - Low AA Batteries and 9V Battery
