WiFi Setup on Your BR200 Bridge

The BR200, unlike the BR100, supports WiFi connectivity. After the initial setup, you can configure WiFi for the BR200 and move it to where the Z-Wave® signal will be strongest for your devices.

NOTE:

The BR200 MUST be enrolled and set up on a wired connection initially. A wired connection and Trane® Home enrollment are required to set up WiFi.

Set Up WiFi on the Bridge

NOTE:

WiFi configuration must be done on the Trane Home web portal. It is not possible to configure WiFi on the bridge via the mobile app.

Log in to the web portal.

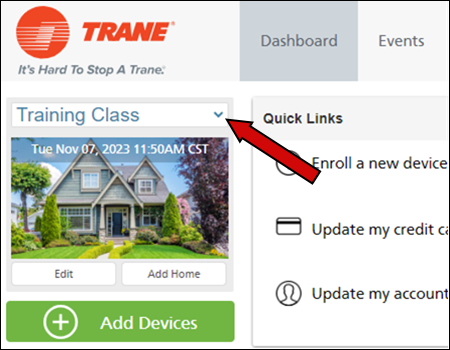

If you have more than one home, select the home where the BR200 in question is installed.

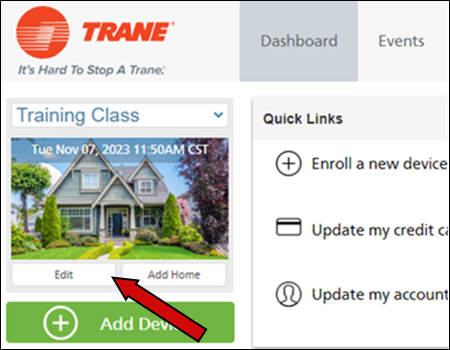

Click Edit under the house picture to enter Home Settings.

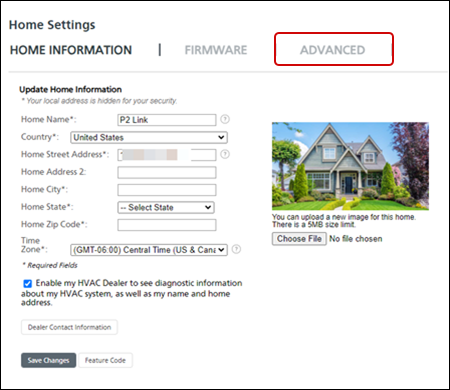

In Home Settings, click Advanced.

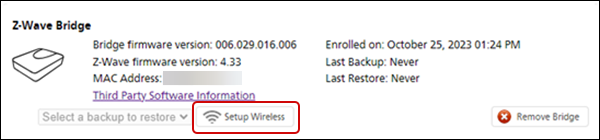

Locate the bridge on the page and click Setup Wireless.

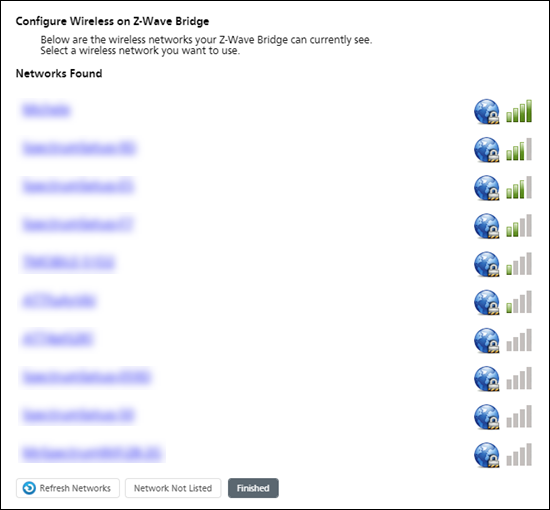

Select your network from the list that appears.
- NOTE: If you have a "hidden" network, please choose "Network Not Listed" at the bottom of the list.

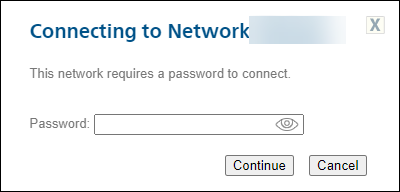

Enter your network password and click Continue.

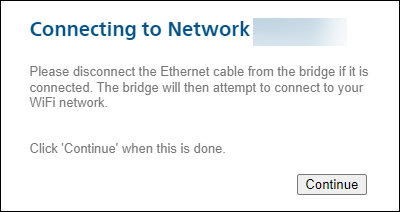

Unplug the Ethernet cable from the bridge and click Continue.

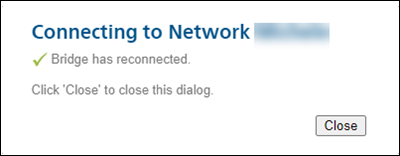

The bridge should reconnect, this time via WiFi. Click Close.

If you have any questions or need assistance, please contact Trane Home Customer Support via email at help@tranehome.com or call 1-877-288-7707, Monday-Friday 9 AM – 8 PM ET, and Saturday 10 AM – 5 PM ET.
