Link UX360 - Home Screen Layout (On-Screen Applets/Widgets)

Link UX360 - Home Screen Layout (On-Screen Applets/Widgets)

The Link thermostat now has a "Screen Layout" menu that allows additional information to be displayed on the home screen.

Add Applets To Your Thermostat Home Screen

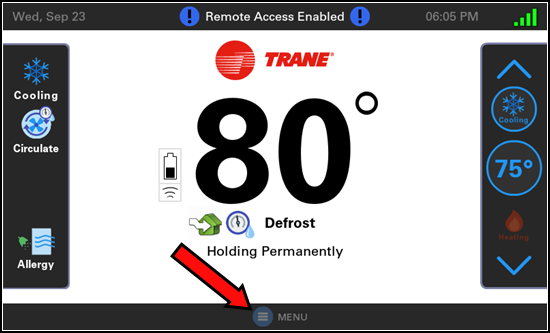

1. Press the Menu button.

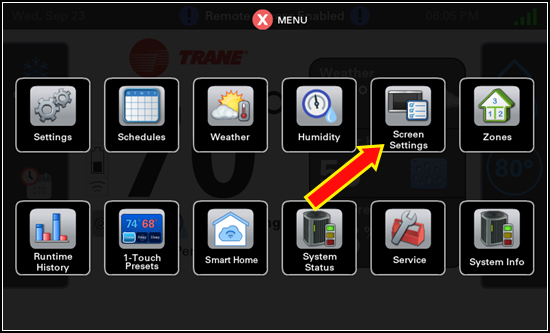

2. Select Screen Settings.

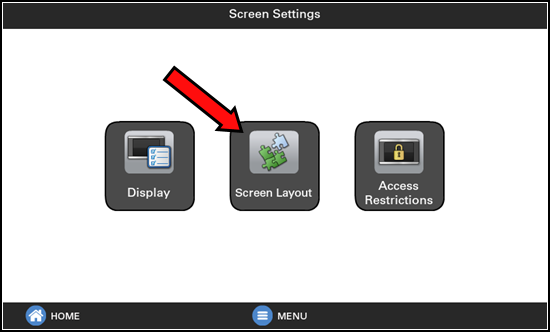

3. Tap Screen Layout.


   • NOTE: If the Screen Layout option is not present, please see the section Screen Layout Option Is Not Present for more information.

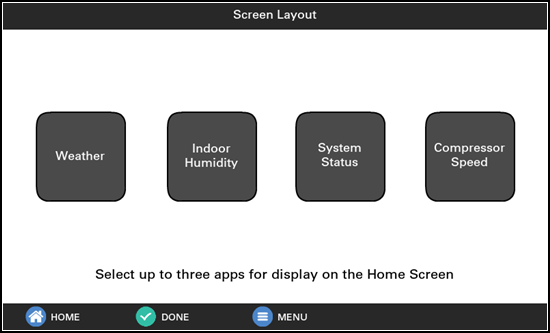

4. Select up to 3 applets to display. The applets will displayed top to bottom in the order selected. Choose Done to save the changes.

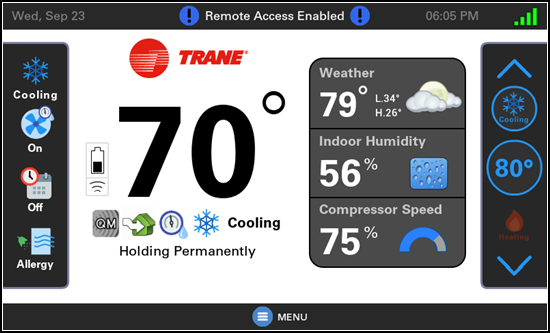

5. The applets will appear on the main screen.



Screen Layout Option Is Not Present

If the "Screen Layout" is not present and the thermostat was installed recently, the thermostat may not have upgraded to the latest firmware version. Leave the thermostat connected to the Internet and it will update the firmware automatically and the option will appear.

If you have any questions or need assistance, please contact Trane Home Customer Support via email at help@tranehome.com or call 1-877-288-7707, Monday-Friday 9 AM – 8 PM ET, and Saturday 10 AM – 5 PM ET.
